Cargo air shower room image 1

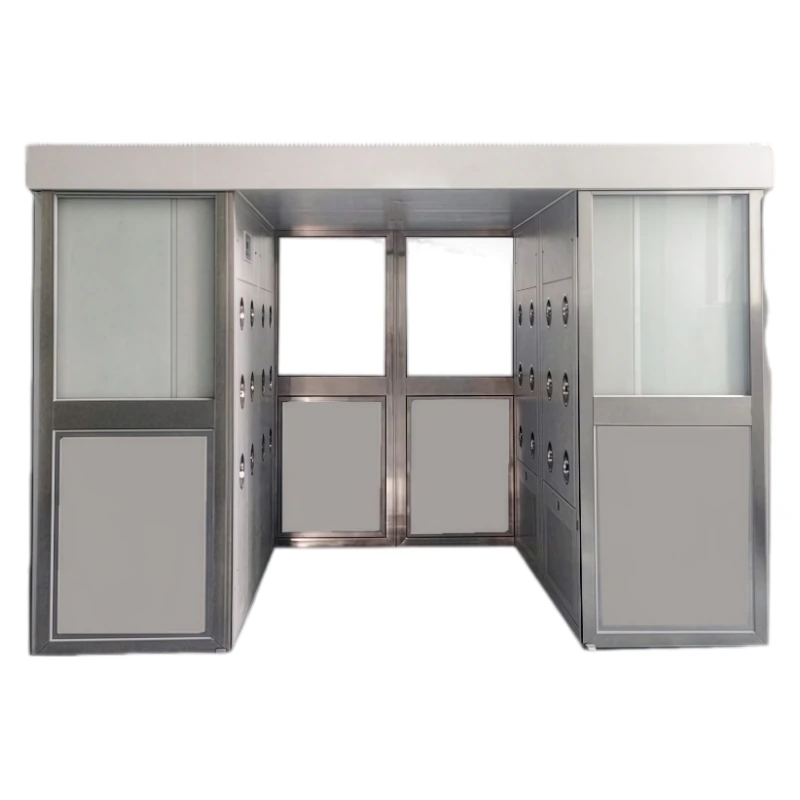

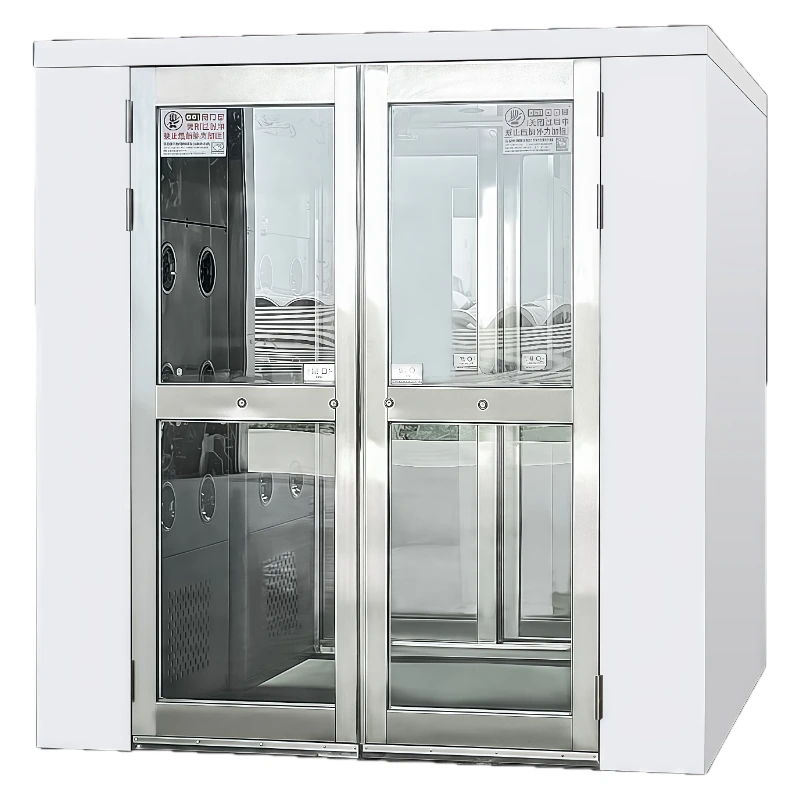

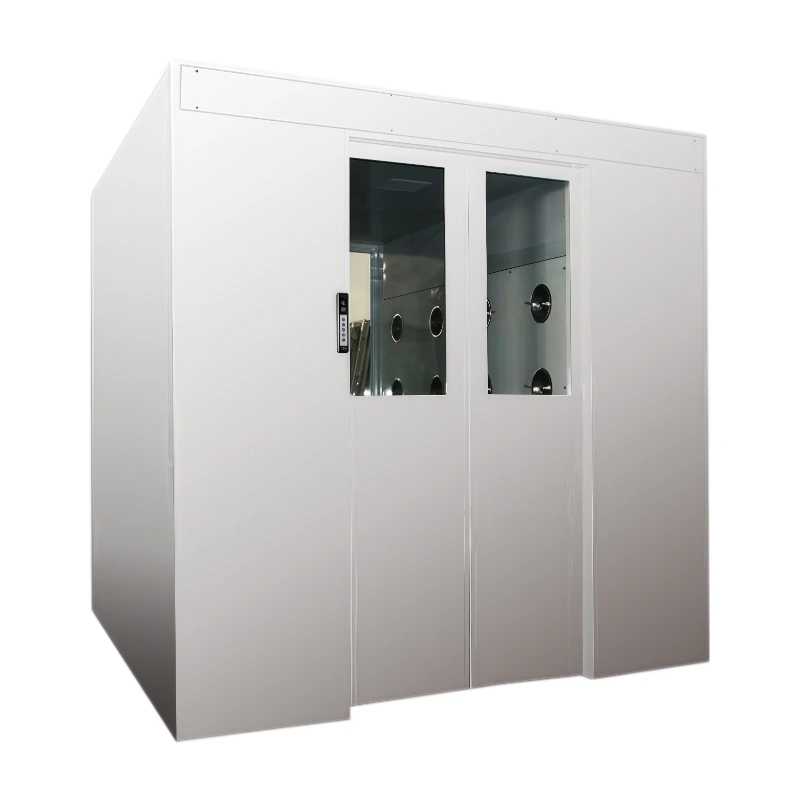

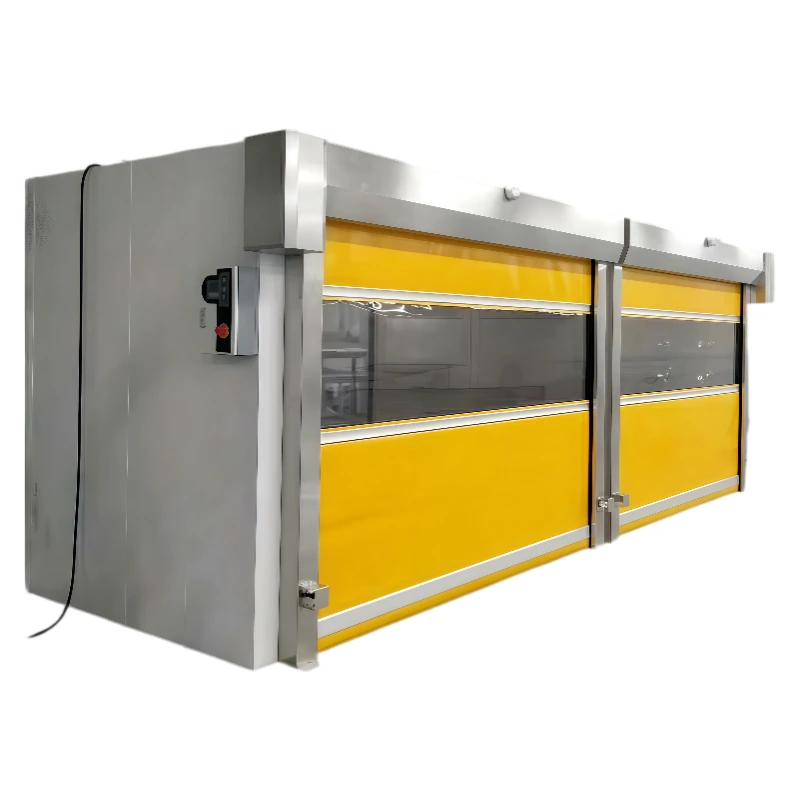

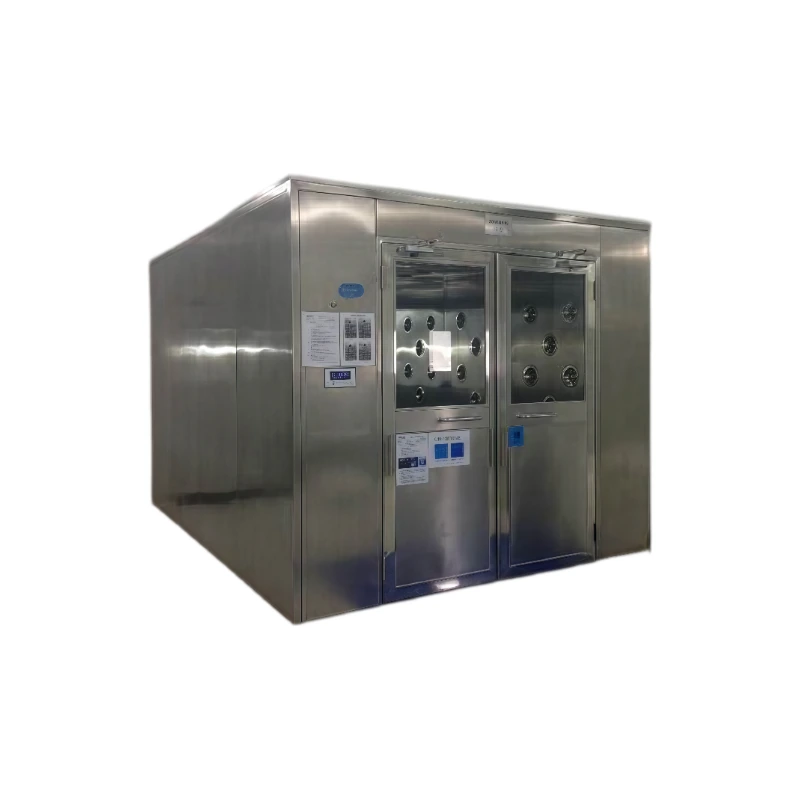

Cargo Air Shower Room

A controlled air-shower passage for cargo and material transfer into clean areas. The 2000 mm Cargo Air Shower Room uses filtered air to help remove loose particles from goods, trolleys and materials before they enter a controlled area. Its double-speed blowers can provide the shower cycle and lower-speed self-purification when the chamber is unoccupied. The automatic doors and selectable opening methods support a controlled transfer sequence between clean and non-clean areas.

Advantages

  1. Double-speed blowers support the air shower cycle and lower-speed self-purification.

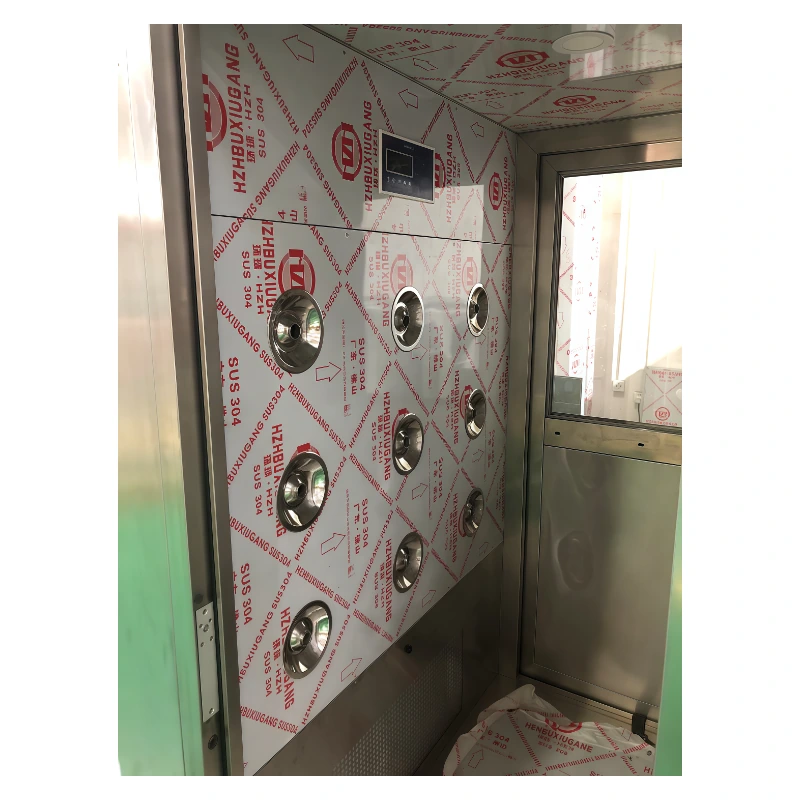

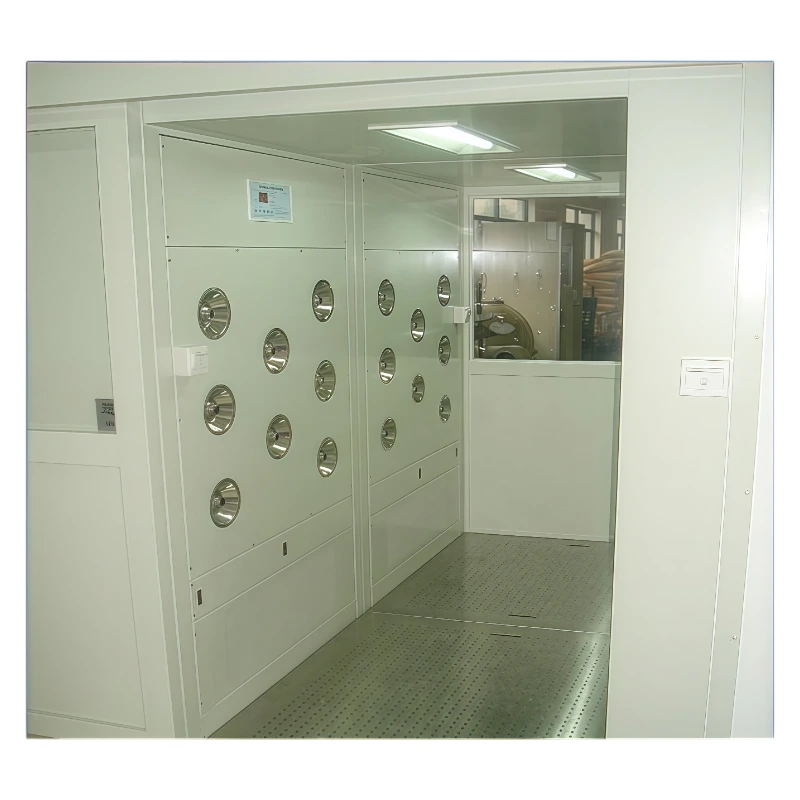

  2. Pre-filters, HEPA filters and stainless-steel nozzles support clean-air delivery into the cargo chamber.
  3. Tempered-glass windows, infrared sensors and a control panel support controlled daily operation.
  4. Two automatic door sets support cargo transfer between clean and non-clean areas.
  5. Working time is preset to 10 seconds and can be adjusted from 10 to 99 seconds.
  6. Optional SUS304 body or inner wall, UV lamp, static-electricity device and hidden door device are available.
  7. Optional door opening methods include wireless remote control, microwave automatic induction, non-contact inductive switch and contact inductive switch.

Model Comparison

Model YZ-CASR2000-1 YZ-CASR2000-2
External Size (W×L×H)2000×2000×2180 mm2000×3000×2180 mm
Internal Size (W×L×H)1200×2000×1980 mm1200×3000×1980 mm
Air Speed18–22 m/s
Number of Nozzles2436
Working TimePreset 10 seconds; adjustable 10–99 seconds
Outer Structure1.2 mm cold-rolled steel with epoxy-powder coating (also can use SUS304 material)
Door MaterialSUS304
Automatic Door Device2 sets
HEPA Filter610×610×69 mm × 4610×610×69 mm × 6
Filter Efficiency99.99 at 0.3 µm
Blower Power750 W × 4750 W × 6
LED Lamp Power12 W × 212 W × 3
Power Supply380 V / 50 Hz

Custom sizes are available according to project requirements.
