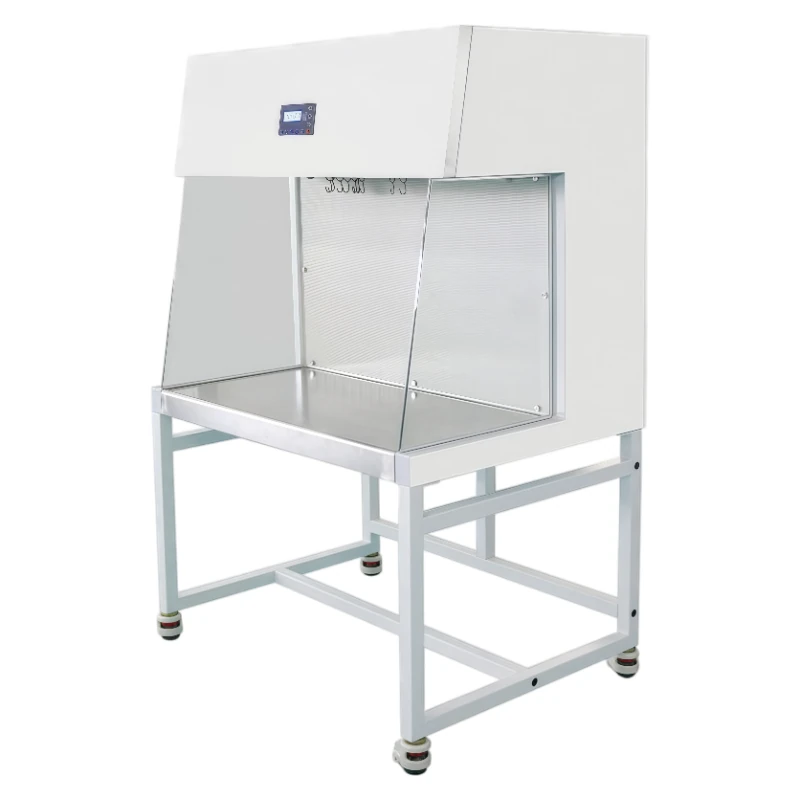

Horizontal Laminar Flow Cabinet

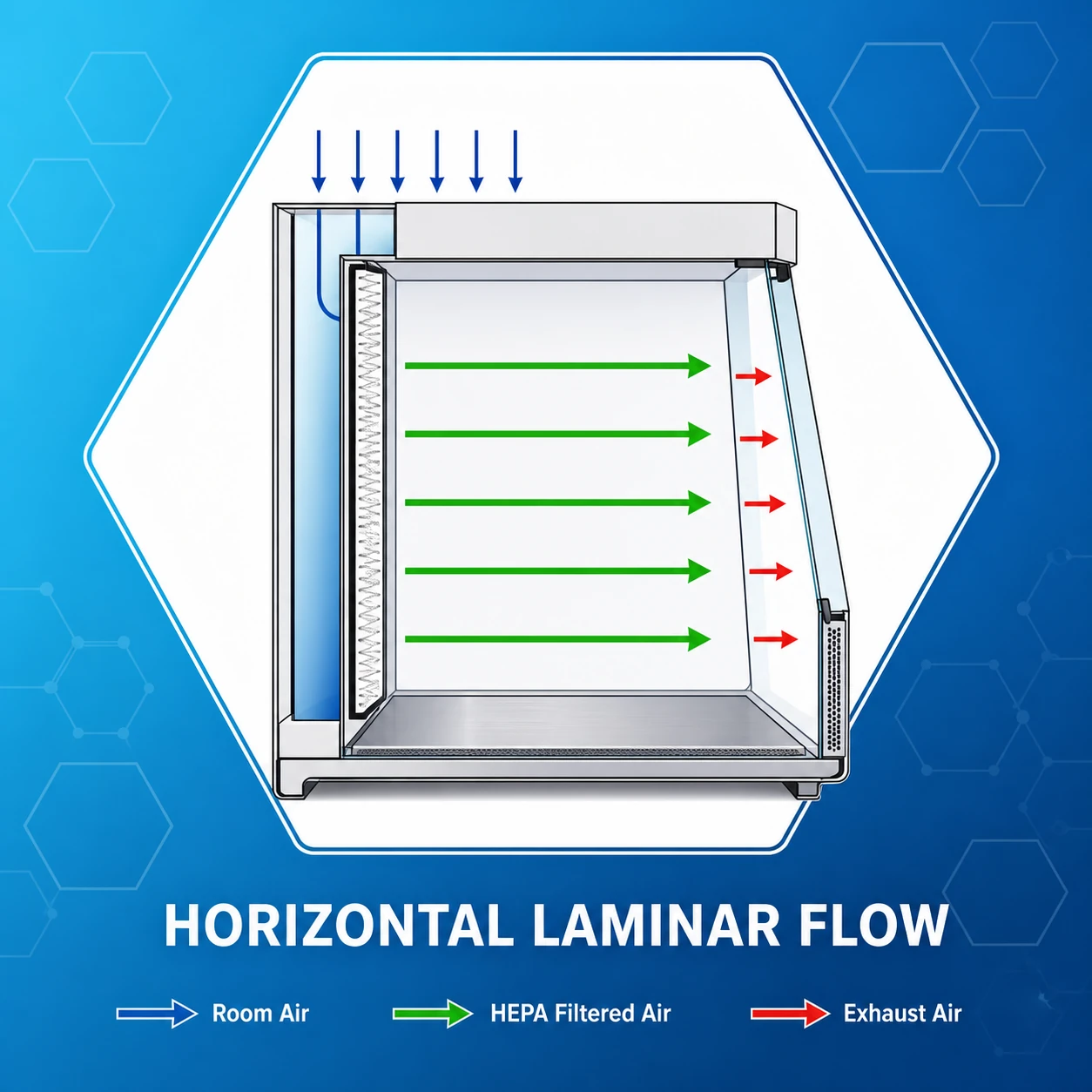

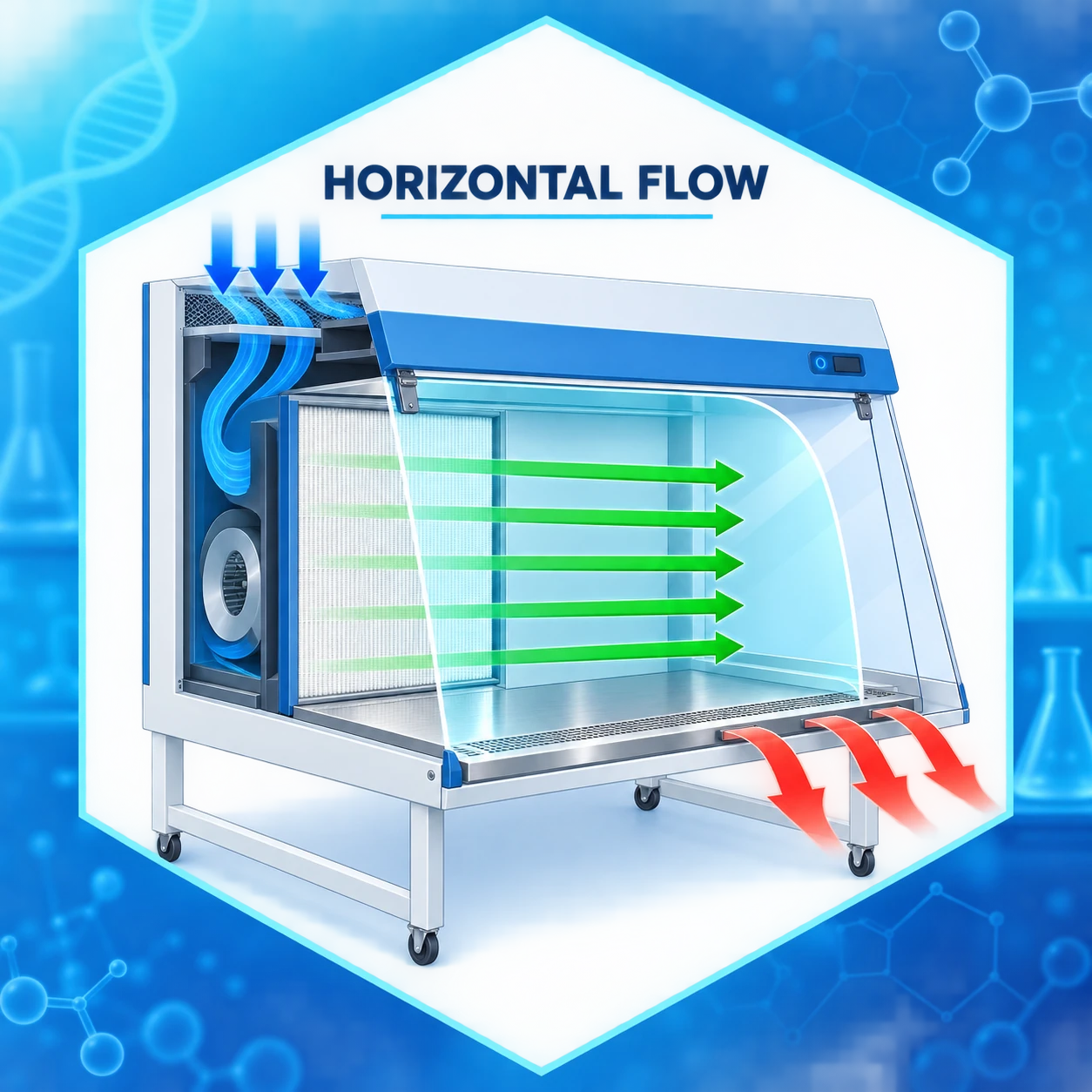

Horizontal HEPA-filtered airflow for reliable sample protection. This horizontal laminar flow cabinet creates a particle-controlled working environment by directing filtered air from the rear filter wall horizontally across the work surface in a smooth, unidirectional stream. The enclosed work zone is maintained under positive pressure to reduce infiltration of contaminated room air. It is suitable for medical research laboratories, hospitals, manufacturing facilities and other research or production environments where sample protection is required.
Advantages
- Horizontal laminar airflow moves clean air from the rear filter wall evenly across the entire work surface.
- High-efficiency HEPA filtration reaches 99.999% efficiency at 0.3µm for reliable sample protection.
- The LCD display shows airflow velocity, UV timing, UV working time, system working time and real-time status.
- A motorized front window provides convenient access with a controlled maximum opening.
- The 304 stainless-steel work table is durable, corrosion resistant and easy to clean.
- Transparent side and front windows improve visibility, while the washable pre-filter simplifies routine maintenance.
Model Comparison
| Model | YZ-ALF-H1300 | YZ-ALF-H1800 |
|---|---|---|
| External Size (W*D*H) | 1300*820*2040mm | 1800*820*2070mm |
| Internal Size (W*D*H) | 1200*500*570mm | 1700*500*570mm |
| Work Surface Height | 750mm | |
| Display | LCD Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating Work Table: 304 stainless steel Side and Front Window: 5mm toughened glass, anti-UV | |
| Pre-Filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3µm | |
| Noise | <65dB | |
| Front Window | Motorized | |
| Max Opening | 430mm | |
| LED Lamp | 12W*1 | 16W*2 |
| UV Lamp | 30W*1 | 30W*1 |
| UV Function | Emission of 253.7 nanometers | |
| Consumption | 400W | 500W |
| Waterproof Socket | Two, total load≤500W | |
| Caster | Universal caster with leveling feet | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | LED lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2 Water tap (YZ-ALF-H1800 only) | |
| Optional Accessory | Electric height adjustable base stand | |
| Gross Weight | 254kg | 328kg |
| Package Size (W*D*H) | 1450*1060*1650mm | 1950*1060*1600mm |
