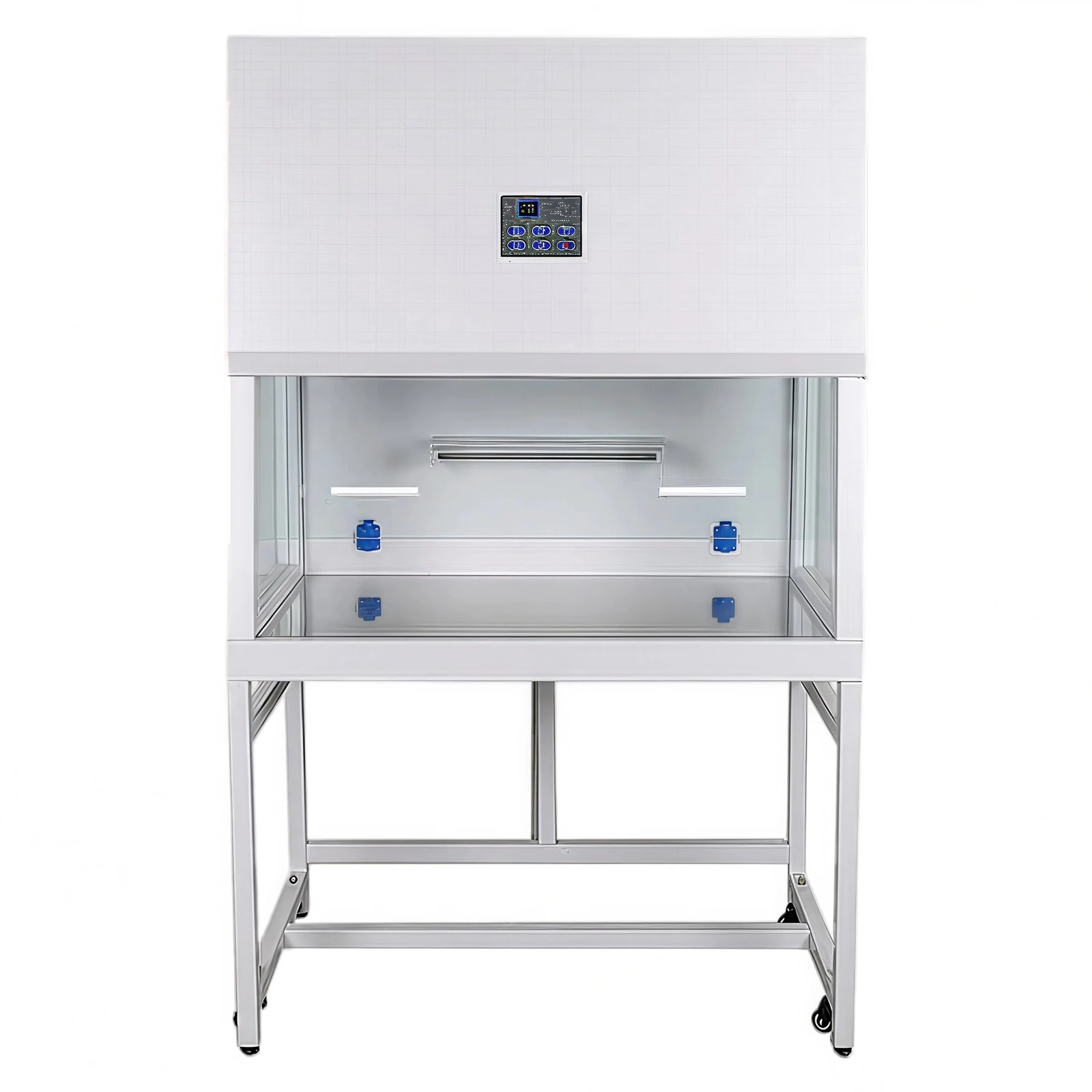

PCR Cabinet

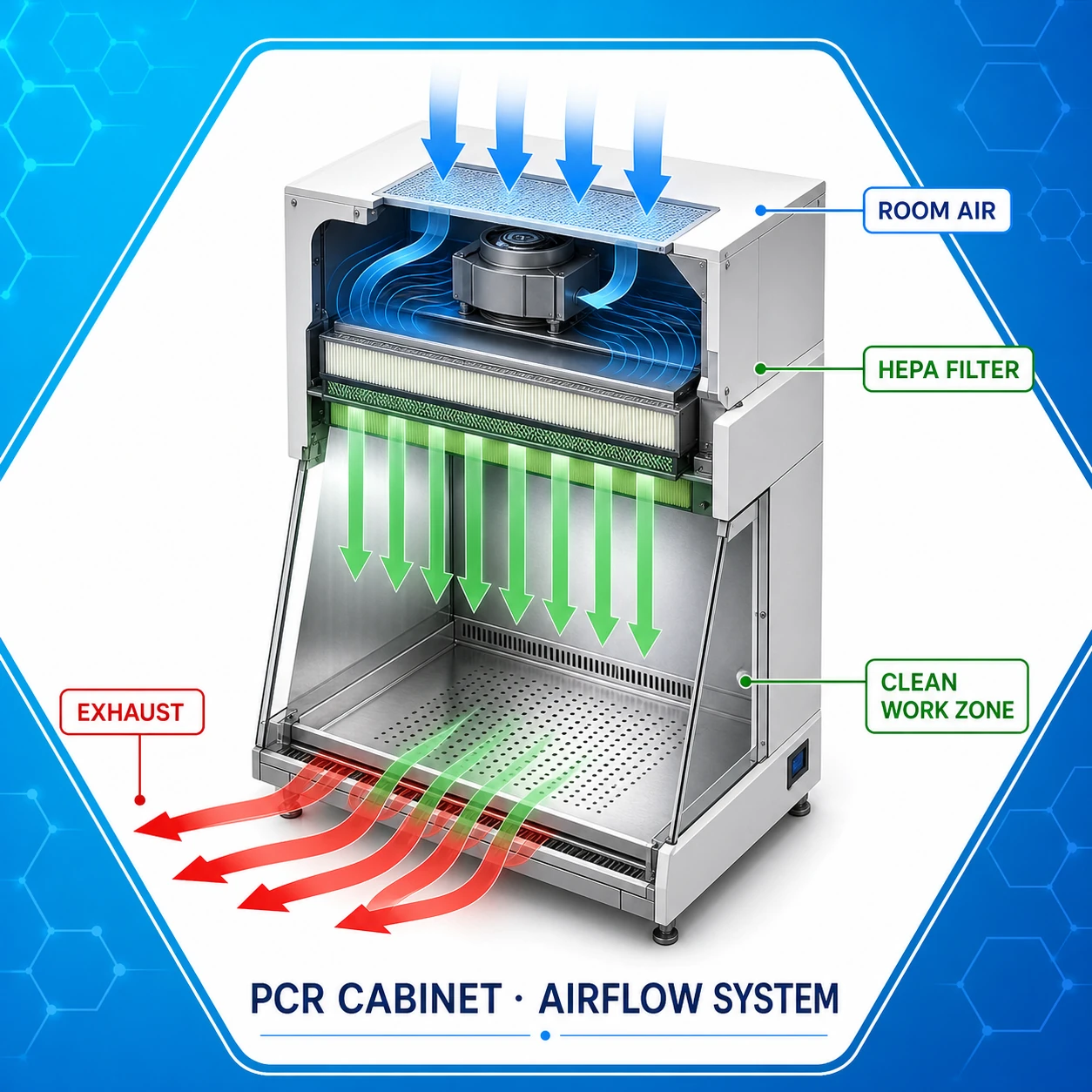

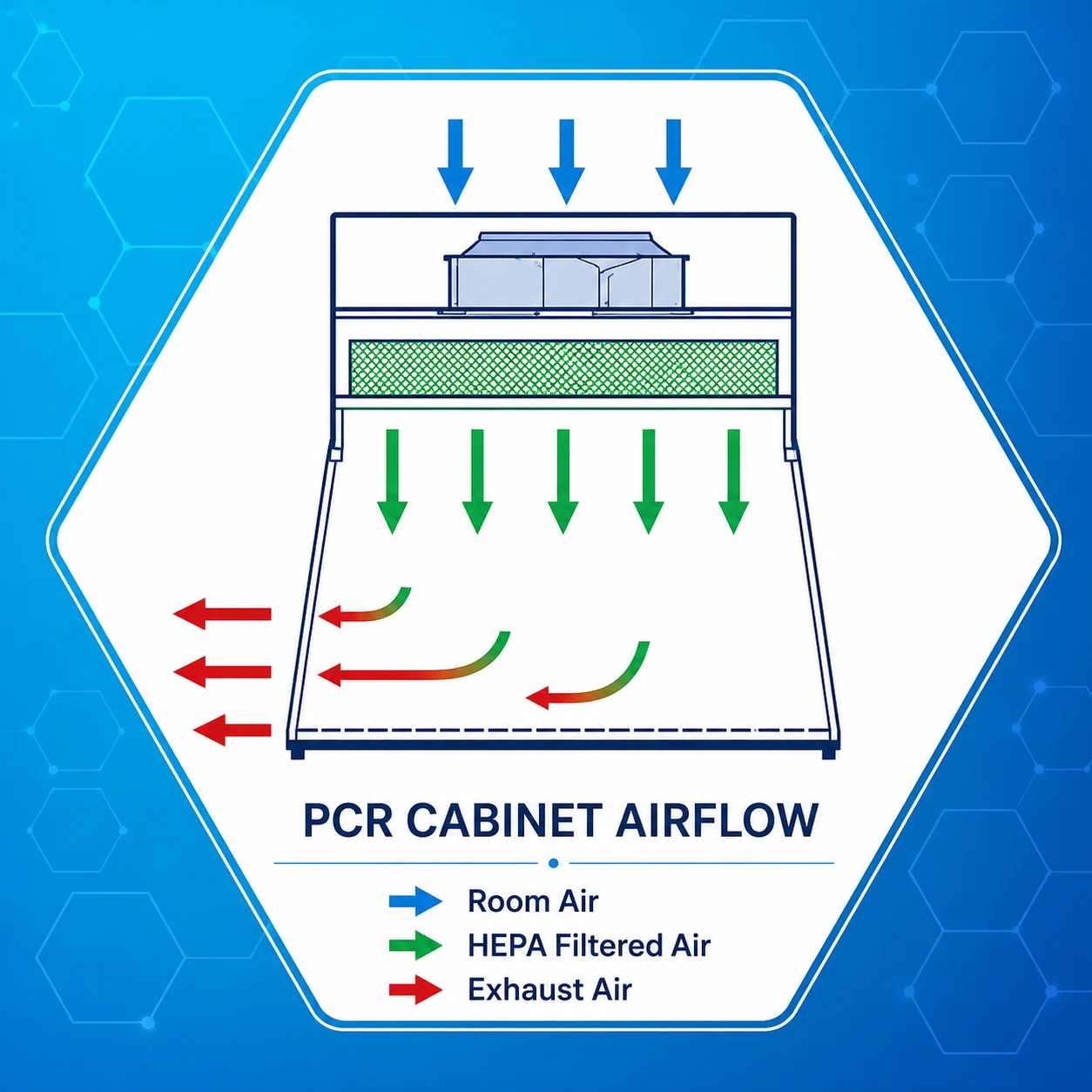

HEPA-filtered workspace with UV control for contamination-sensitive PCR preparation. This PCR cabinet creates a particle-controlled working environment for preparing PCR reagents, samples and other contamination-sensitive materials. Adjustable HEPA-filtered airflow passes through the work zone, while the UV sterilization system supports decontamination between procedures. Five cabinet widths provide a suitable working area for different laboratory capacities.
Advantages
- LCD display provides clear operating information; YZ-PCR1000 is equipped with an LED display.
- Integrated UV sterilization system supports effective work-zone decontamination.
- High-efficiency HEPA filtration reaches 99.999% efficiency at 0.3µm.
- Memory function restores operating settings after a power failure.
- The UV lamp can only be switched on when the front window is closed, improving operator safety.
- A 0–90 minute UV timer automatically switches off the UV lamp when the set time expires.
Model Comparison
| Model | YZ-PCR800 | YZ-PCR1000 | YZ-PCR1200 | YZ-PCR1300 | YZ-PCR1500 |
|---|---|---|---|---|---|
| External Size (W*D*H) | 800*700*1770mm | 1000*705*1770mm | 1200*700*1770mm | 1300*700*1770mm | 1500*700*1770mm |
| Internal Size (W*D*H) | 700*595*550mm | 900*595*560mm | 1100*595*550mm | 1200*595*550mm | 1400*595*550mm |
| Work Surface Height | 750mm | ||||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating Work Table: 304 stainless steel | ||||
| Front & Side Windows | 5mm toughened glass, anti-UV | ||||
| Front Window | Motorized | Manual | Motorized | ||
| Max Opening | 300mm | 320mm | 300mm | ||
| Pre-Filter | Polyester fiber, washable | ||||
| HEPA Filter | 99.999% efficiency at 0.3µm | ||||
| Airflow Velocity | 0.3-0.5m/s, speed adjustable | ||||
| Noise | ≤65dB | ||||
| UV Lamp | 20W*1 | 20W*2 | 30W*1 | 40W*1 | |
| UV Function | Emission of 253.7 nanometers, with UV timer | ||||
| LED Lamp | 8W*2 | 12W*2 | |||
| Illumination | ≥350lx | ||||
| Shelf with IV Bar | Stainless steel, 502*150*50mm (W*D*H) | ||||
| Caster | Universal caster with leveling feet | ||||
| Consumption | 400W | 300W | 600W | ||
| Waterproof Socket | Two, total load≤500W | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Standard Accessory | UV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar | ||||
| Optional Accessory | Electric height adjustable base stand | ||||
| Gross Weight | 168kg | 178kg | 220kg | 231kg | 250kg |
| Package Size (W*D*H) | 960*940*1450mm | 1150*930*1450mm | 1350*930*1450mm | 1450*930*1450mm | 1650*930*1450mm |
