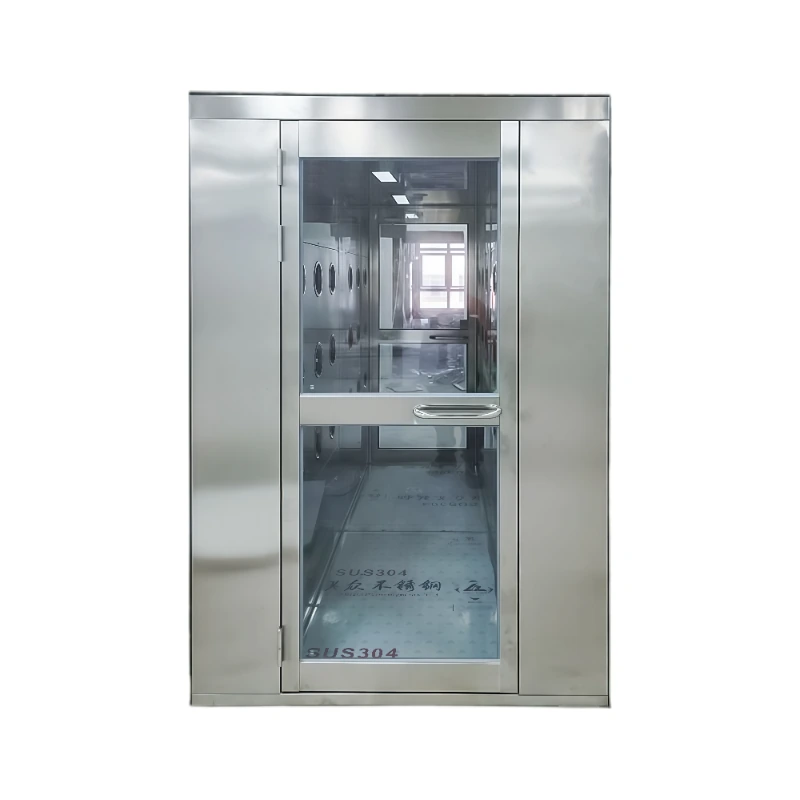

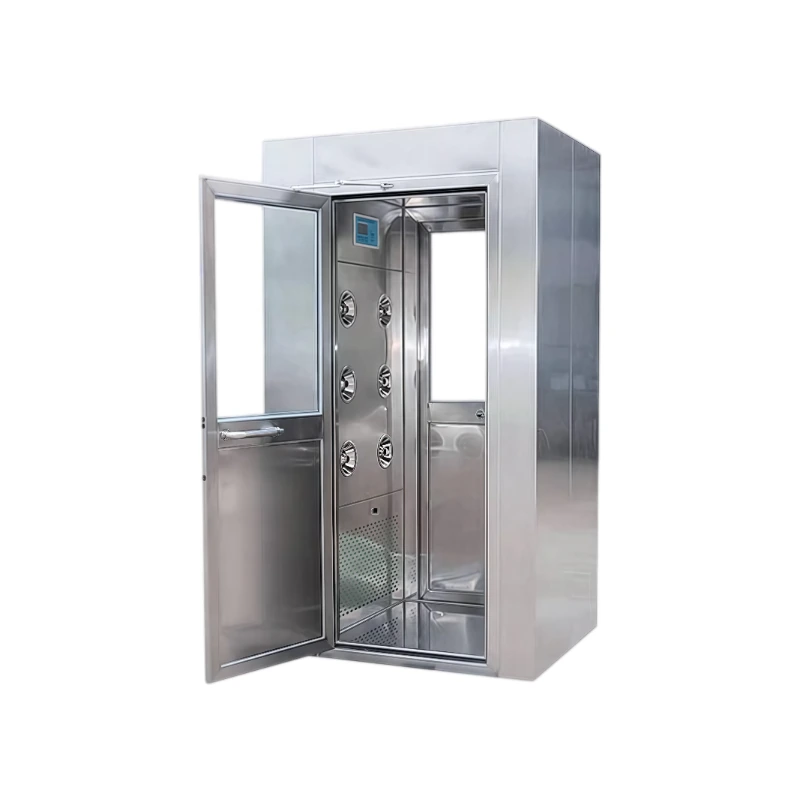

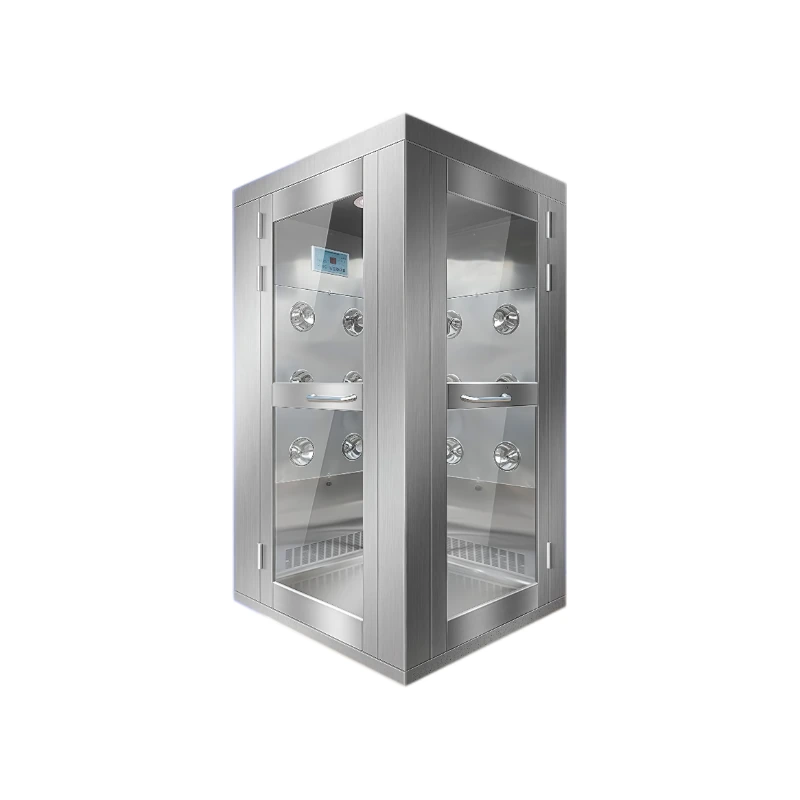

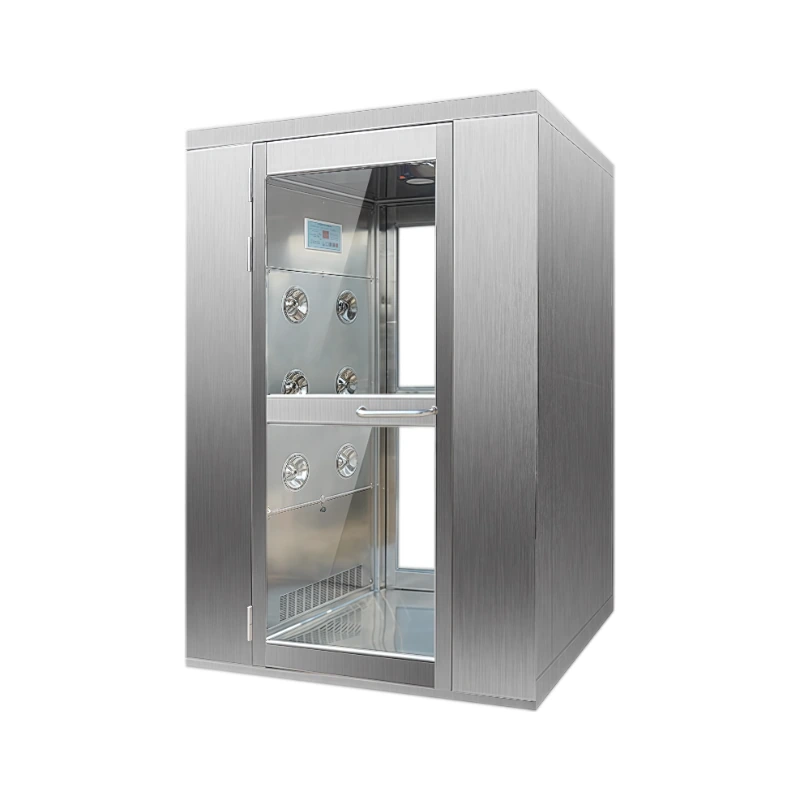

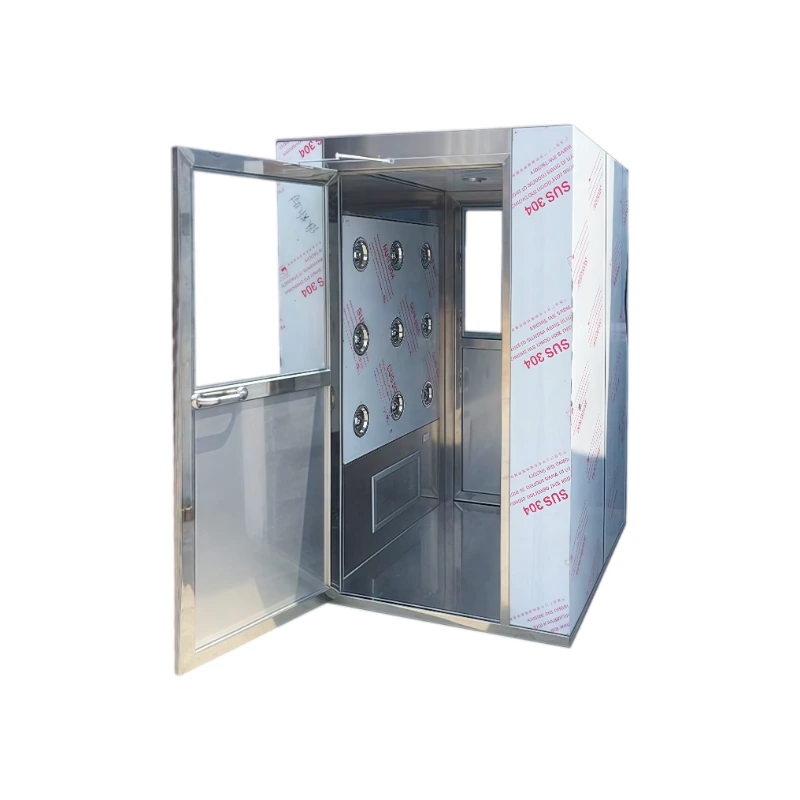

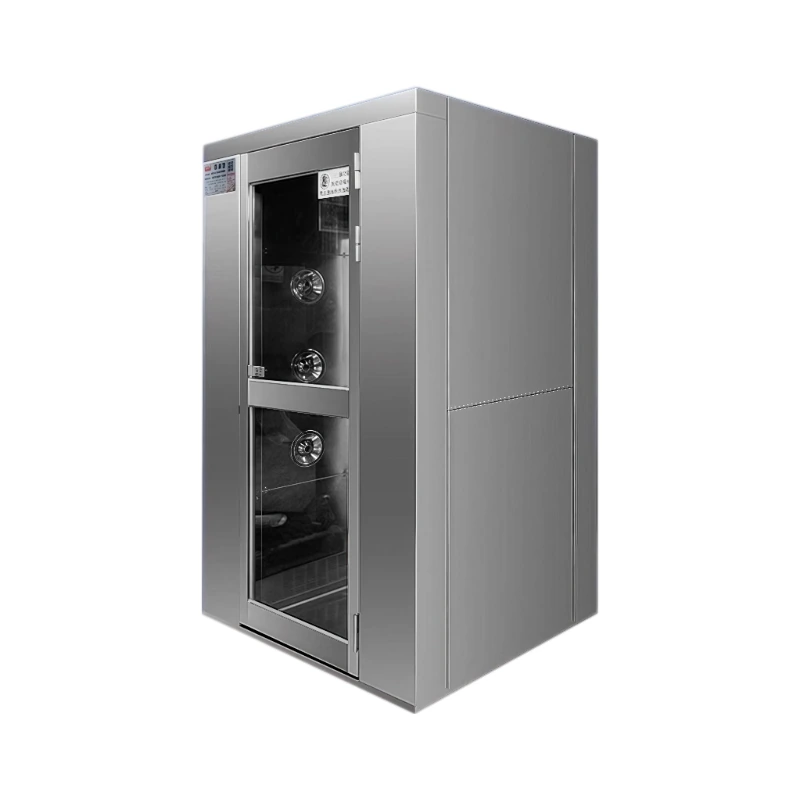

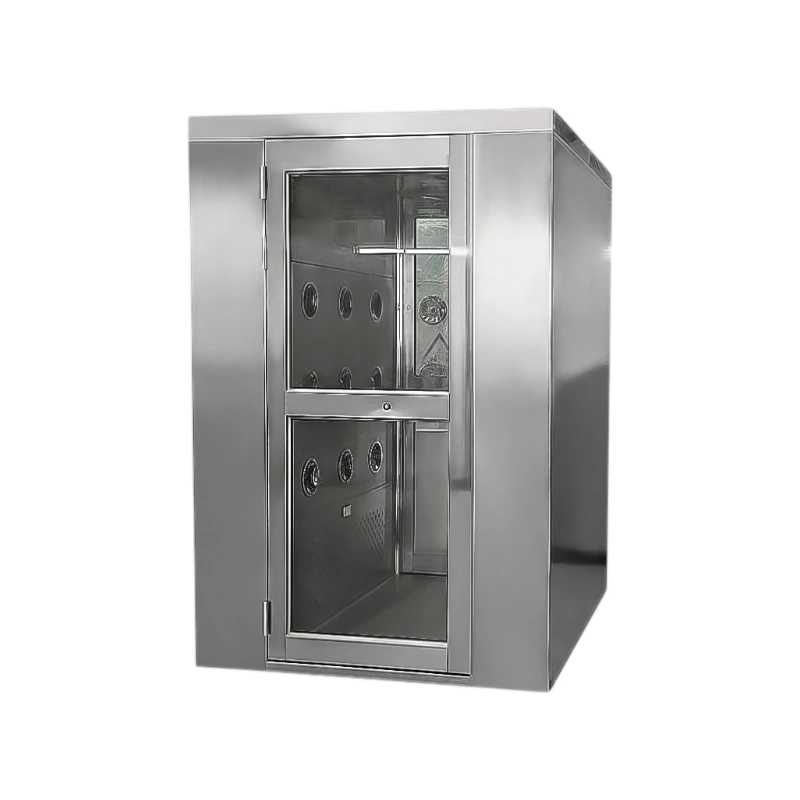

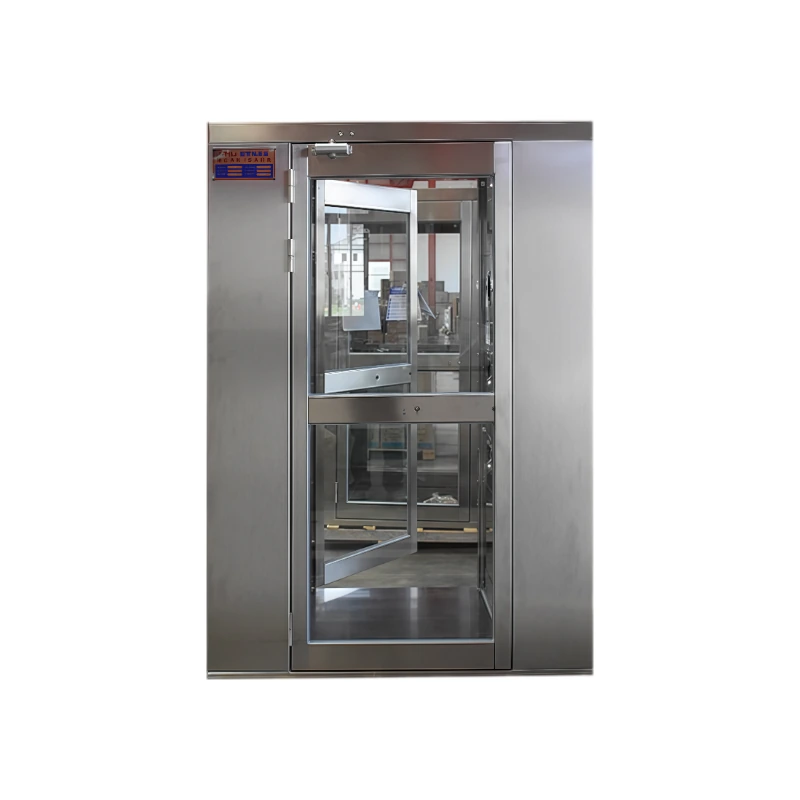

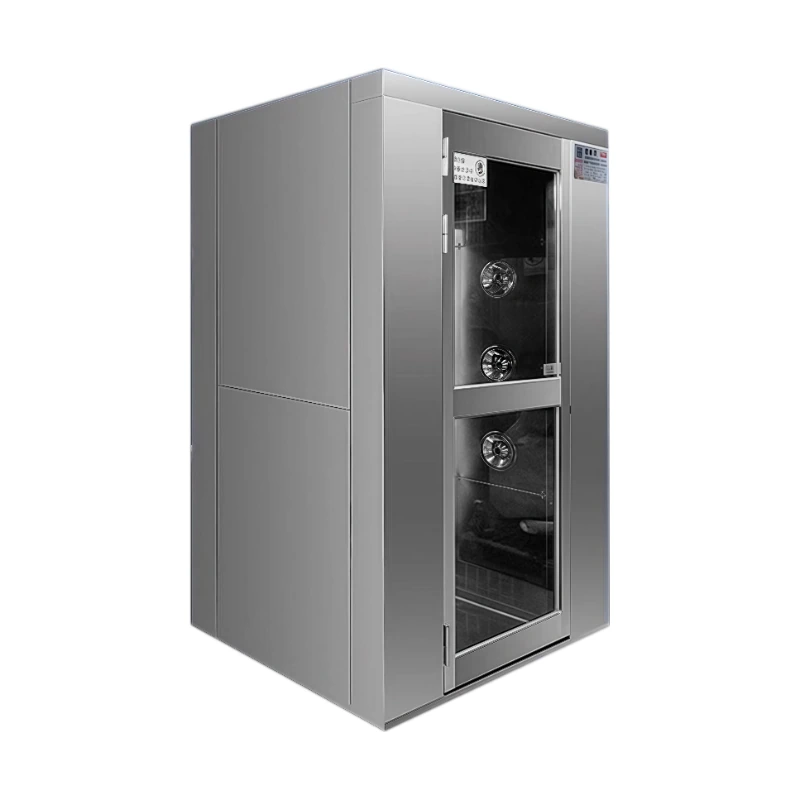

Air Shower Room
A controlled entry passage between clean and non-clean areas. The Air Shower Room series is general-purpose local purification equipment for people and goods entering a clean area. Clean air helps remove dust carried on garments and goods before they enter the controlled space. The electronically interlocked front and rear doors also act as an air lock, helping prevent unpurified air from entering the clean area. When the chamber is empty, the double-speed blower can run at a lower speed for self-purification.

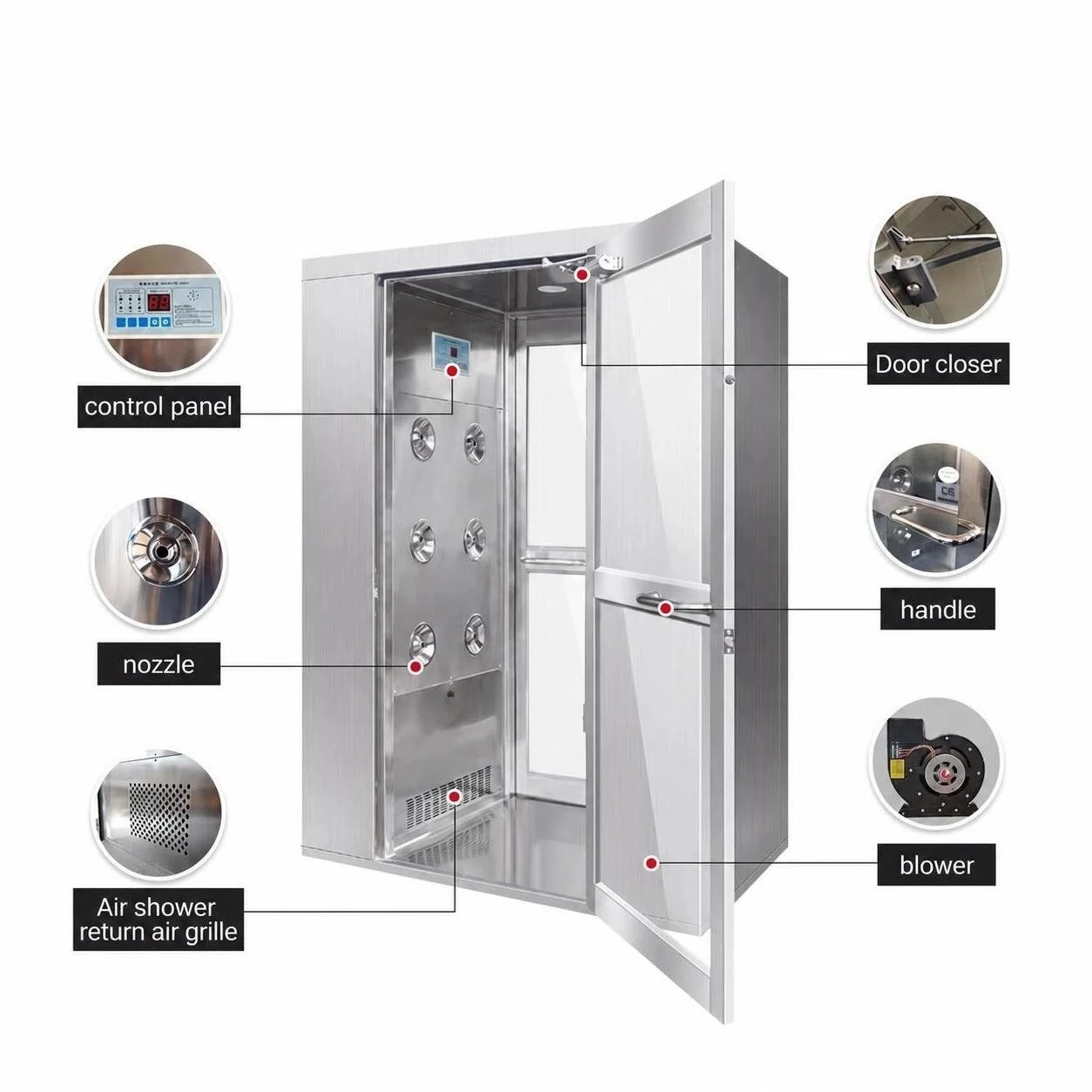

Advantages
- Double-speed blower supports the air shower cycle and lower-speed self-purification when the chamber is unoccupied.
- Pre-filters, HEPA filters and stainless-steel nozzles support clean-air delivery into the chamber.
- Electronically interlocked doors, magnetic lock and infrared sensor support a controlled entry sequence.
- Tempered-glass window, indicator light, control panel and emergency-stop button provide clear operation and visibility.
- Working time is preset to 10 seconds and can be adjusted from 10 to 99 seconds.
- Optional fittings include SUS304 main body or inner wall, UV lamp, static-electricity device, automatic door device and differential pressure gauge.
Model Comparison
| Model | YZ-ASR1290-1 | YZ-ASR1290-2 | YZ-ASR1290-3 |
|---|---|---|---|
| External Size (W×L×H) | 1290×1000×2180 mm | 1290×2000×2180 mm | 1290×3000×2180 mm |
| Internal Size (W×L×H) | 790×860×1930 mm | 790×1860×1930 mm | 790×2860×1930 mm |
| Air Speed | 20–25 m/s | ||
| Number of Nozzles | 12 | 24 | 36 |
| Working Time | Preset 10 seconds; adjustable 10–99 seconds | ||
| Outer Structure | 1.2 mm cold-rolled steel with epoxy-powder coating (also can use SUS304 material) | ||
| Door Material | SUS304 | ||
| Bottom Material | SUS304 | ||
| HEPA Filter | 610×610×69 mm × 2 | 610×610×69 mm × 4 | 610×610×69 mm × 6 |
| Filter Efficiency | 99.99 at 0.3 µm | ||
| Blower Power | 750 W × 2 | 750 W × 4 | 750 W × 6 |
| LED Lamp Power | 12 W × 1 | 12 W × 2 | 12 W × 3 |
| Power Supply | 380 V / 50 Hz | ||
| Recommended Capacity | 1–2 people | 2–4 people | 3–6 people |
Custom sizes are available according to project requirements.
