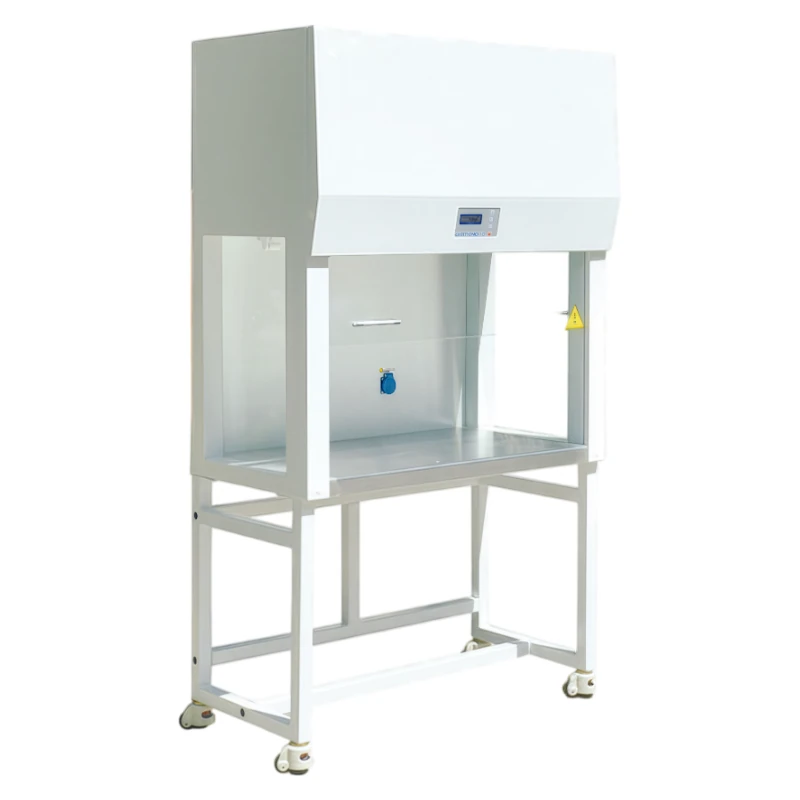

Vertical Laminar Flow Cabinet

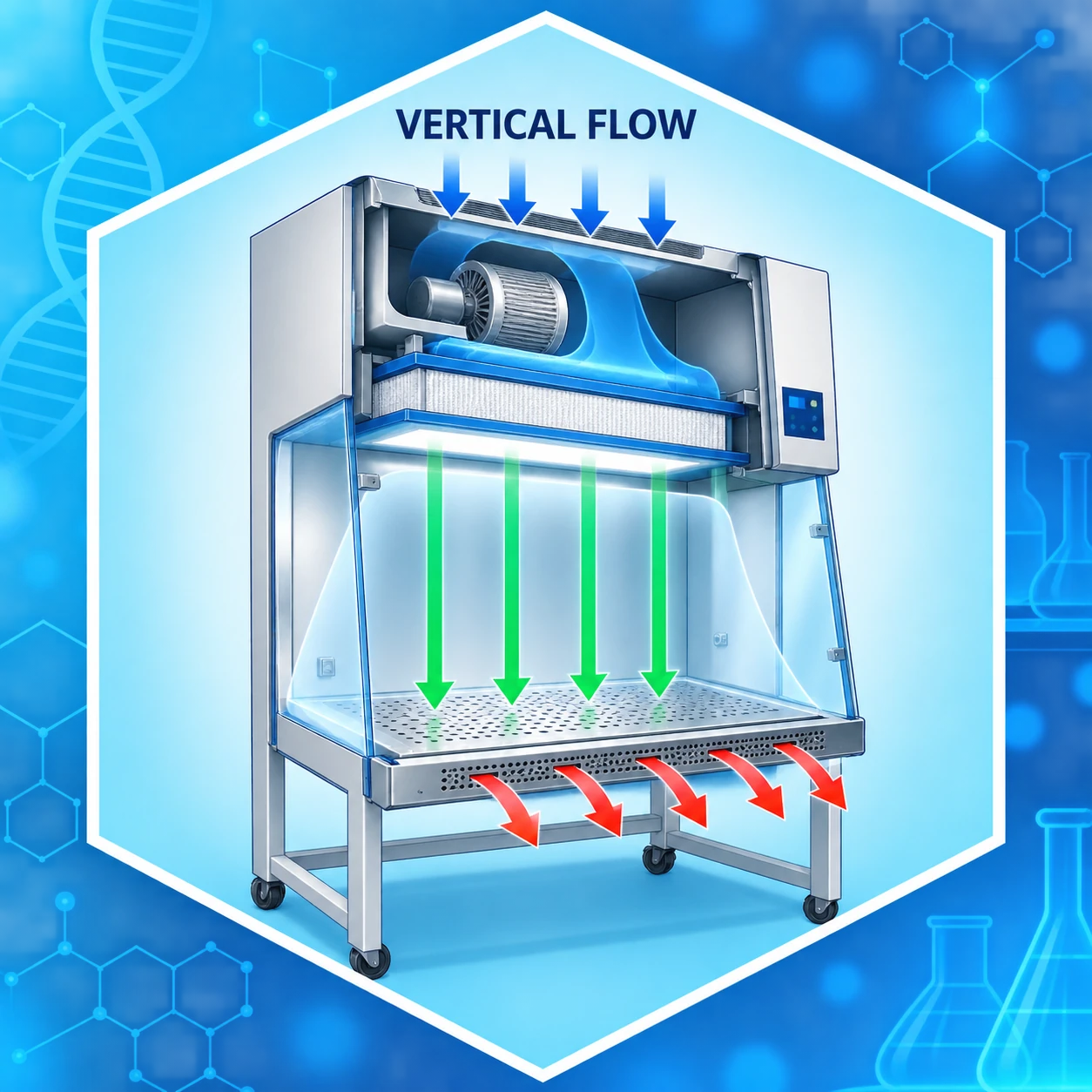

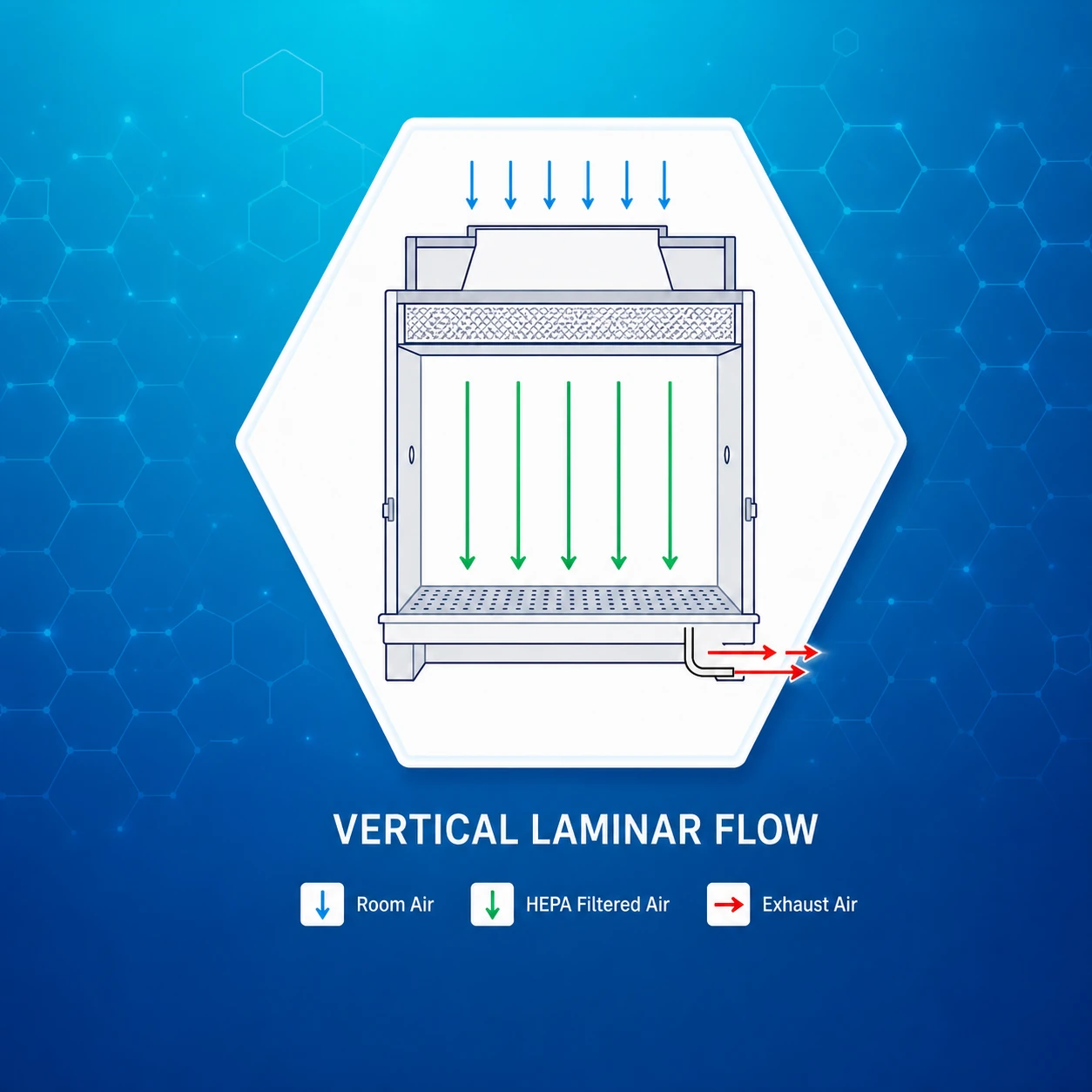

Downward HEPA-filtered airflow for reliable sample protection. This vertical laminar flow cabinet creates a particle-controlled working environment by directing filtered air downward across the work surface in a unidirectional stream. The enclosed work zone is maintained under positive pressure to reduce infiltration of contaminated room air. It is suitable for medical research laboratories, hospitals, manufacturing facilities and other research or production environments where sample protection is required.
Advantages
- Vertical laminar airflow provides clean, unidirectional air across the work surface for sample protection.
- High-efficiency HEPA filtration reaches 99.999% efficiency at 0.3µm.
- The LCD display shows airflow velocity, UV timing, UV working time, system working time and real-time status.
- A motorized front window provides convenient access while maintaining a controlled work opening.
- The 304 stainless-steel work table is durable, corrosion resistant and easy to clean.
- Transparent side and front windows improve visibility, while the washable pre-filter simplifies routine maintenance.
Model Comparison
| Model | YZ-ALF-V1300 | YZ-ALF-V1800 |
|---|---|---|
| External Size (W*D*H) | 1300*820*2040mm | 1800*750*2040mm |
| Internal Size (W*D*H) | 1200*645*610mm | 1700*645*610mm |
| Work Surface Height | 750mm | |
| Display | LCD Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating Work Table: 304 stainless steel Side and Front Windows: 5mm toughened glass, anti-UV | |
| Pre-Filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3µm | |
| Noise | <65dB | |
| Front Window | Motorized | |
| Max Opening | 430mm | |
| LED Lamp | 12W*1 | 16W*1 |
| UV Lamp | 30W*1 | 40W*1 |
| UV Function | Emission of 253.7 nanometers | |
| Consumption | 400W | 450W |
| Waterproof Socket | Two, total load≤500W | |
| Caster | Universal caster with leveling feet | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | LED lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2 | |
| Optional Accessory | Electric height adjustable base stand | |
| Gross Weight | 228kg | 306kg |
| Package Size (W*D*H) | 1460*1070*1650mm | 1960*970*1600mm |
